Product Dimensions 1.8"h x 4"w x 21.8"d

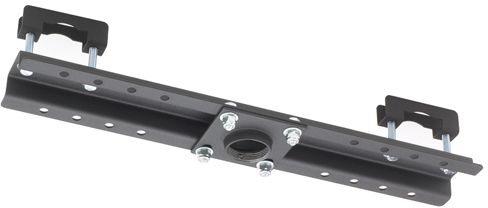

Spans truss systems for easy overhead installation of equipment in buildings and exhibit booths. Spans truss systems and provides lateral shift capability. Allows cable routing through the column.Read More
Spans truss systems for easy overhead installation of equipment in buildings and exhibit booths.
Spans truss systems and provides lateral shift capability
Compatible with 1.5" NPT extension columns
Allows cable routing through the column
Span Distance: 5-18" (127-457 mm)
Clamp Range: up to 2" (51 mm) OD or 1.9" (48 mm) square tubing
TAA Compliant
General Specs | |
| Color | Black |
| Depth (in.) | 21.8 |
| Width (in.) | 4 |
| Height (in.) | 1.8 |
| Weight Kilogram | 3.18 |
| Color/Finish Name | Black |
| Width (cm) | 10.2 |
| Height (cm.) | 4.5 |
| Depth (cm.) | 55.2 |
General | |
| Color | Black |
| Overall Dimensions (H x W x D) | 1.8" x 4.0" x 21.8" (45 x 102 x 552 mm) |
| Certifications | TÜV Certified, UL Listed, TAA Compliant |
| Shipping Weight | 7 lbs (3.18 kg) |
| Weight Capacity | 250 lbs (113.4 kg) |
