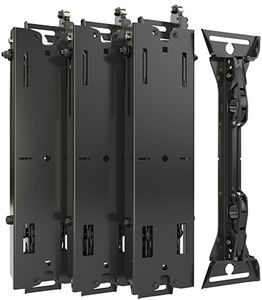

The Fusion™ Extra-Large Pull Out accessory can be used with Fusion™ Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall. Compatible display mount models are XSM1U and XTM1U.Read More
The Fusion™ Extra-Large Pull Out accessory can be used with Fusion™ Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall.
Compatible display mount models are XSM1U and XTM1U.
Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display.
Up to 11.54” (293 mm) extension when combined with Fusion mount - great for recessed applications
Scissor assembly extends out up to 9.5"
Plumb adjust to keep display in line with the wall
Latch to secure mount in home position
Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80”+ displays (up to 250 lb / 113 kg)
General Specs | |
| Color | Black |
| TV Size's up to (in.) | 100 |
| Weight Capacity (lbs.) | 250 |
| Color Finish Name | Black |
General | |
| Certifications | UL Listed |
| Color | Black |
| Extension | 11.54" (293 mm) |
| Minimum Depth | Retracted depth without mount: 1.56" (39 mm) |
| Plumb Adjustment | +0.5° / -2° |
| Solution Type | Universal |
| Typical Screen Sizes | 55 - 100" |
| Wall Stud Compatibility In | 16" (406 mm) |
| Weight Capacity | 250 lbs (113 kg), please see Installation Manual for details |
