Product Dimensions 19.5"h x 5.86"w x 1.56"d

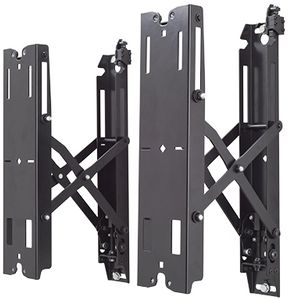

The Fusion pull-out accessory can be used with any of the updated Fusion microadjustable fixed and tilt wall mounts, including portrait models, to add up to 11.54" (293 mm) extension from the wall.Read More
The Fusion pull-out accessory can be used with any of the updated Fusion microadjustable fixed and tilt wall mounts, including portrait models, to add up to 11.54" (293 mm) extension from the wall.
Compatible models are MSM1U, LSM1U, XSM1U, MTM1U, LTM1U, XTM1U and MTMP1U.
Up to 11.54” (293 mm) extension when combined with Fusion mount - great for recessed applications
Same depth from wall as previous Fusion pull-out mounts
Plumb adjust to keep display in line with the wall
Latch to secure mount in home position
Compatible with Fusion tilt mounts and X-Large Fusion for larger mounting patterns (up to 150 lb / 68 kg capacity)
General Specs | |
| Color | Black |
| Depth (in.) | 1.56 |
| Width (in.) | 5.86 |
| Height (in.) | 19.5 |
| Weight Kilogram | 8.27 |
| Weight Capacity (lbs.) | 150 |
| Color Finish Name | Black |
| Width (cm) | 14.9 |
| Height (cm.) | 49.5 |
| Depth (cm.) | 4 |
General | |
| Certifications | UL Listed |
| Color | Black |
| Extension | 11.54" (293 mm) |
| Minimum Depth | Retracted depth without mount: 1.56" (39 mm) |
| Overall Dimensions (H x W x D) | 19.5 x 5.86 x 1.56" (495 x 149 x 40 mm) |
| Shipping Weight | 18.24 lbs (8.27 kg) |
| Solution Type | Universal |
| Weight Capacity | 150 lbs (68 kg) |
| Orientation | Landscape, Portrait |
