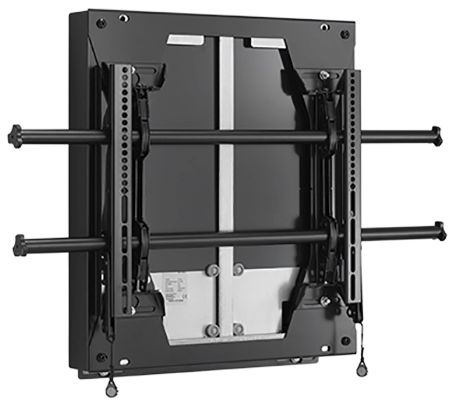

Chief® Black Large Fusion Dynamic Height Adjustable Wall Mount

Model #: LSD1U
230996
Chief
At a Glance
Ideal for interactive applications, Fusion mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides ultra-smooth and fast vertical travel with almost no effort. Ships fully assembled with the LSM1U mount to make this a complete aesthetic solution.
$1,428.00Save $NaN
$1,428.00

Get to know this product.

  • Easy to install. Easy to adjust.
  • Height adjustable box allows up to 15.75” (400 mm) of vertical adjustment instantly
  • ControlZone for post-installation fine-tuning of height and leveling
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • Built in cable stand provides easy access under the screen
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Spring system tested to 60,000 cycles and 10 years of use
  • Integrated security flag

*Wall Mount Only, Other Pieces Not Included. See Store For Details.

Useful Documents
Specifications

General

CertificationsUL Listed
ColorBlack
Dynamic Height Adjustment15.75” (400 mm)
Mounting Pattern Compatibility (Universal Versions)200 x 200 - 800 x 400 mm
Number Of Monitors1
Overall Dimensions (H x W x D)25 x 34.8 x 5.1" (635 x 884 x 130 mm)
Solution TypeUniversal
Wall Stud Compatibility In16" (406 mm)
Weight Capacity122 - 175 lbs (55.4 - 82 kg)
OrientationLandscape

Misc. Specs

Product Weight (lbs.)1.0000
Depth (in.)5.1
Width (in.)34.8
Height (in.)25
Weight Capacity (lbs.)175
Mounting LocationWall
