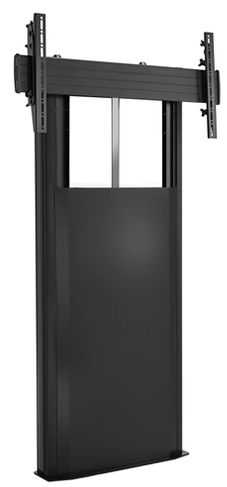

Chief® Black X-Large Fusion Manual Height Adjustable Floor Support Mount

Model #: XFA1UB

$1,870.40

At a Glance

This solution is especially helpful for applications where the wall structure can't carry the weight. This floor support solution incorporates rounded edges and sleek features to give the aesthetics a softer, professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.

WarningProposition 65 Warning for California Residents
Chief® Black X-Large Fusion Manual Height Adjustable Floor Support Mount

General Specs

Depth (in.)6.3
Width (in.)36.8
Height (in.)64.4
TV Size's up to (in.)100
Weight Capacity (lbs.)300
Mounting LocationFloor

Specifications

Center of Display to Floor Table Range42 – 59.6” (1066 – 1515 mm)
ColorBlack
Mounting Pattern Compatibility (Universal Versions)200 x 200 - 800 x 400 mm
Number Of Monitors1
Overall Dimensions (H x W x D)64.4 x 36.8 x 6.3" (1636 x 935 x 160 mm)
Solution TypeUniversal
Typical Screen Sizes55 - 100"
Wall Stud Compatibility In16" (406 mm)
Weight Capacity300 lbs (136.1 kg)
OrientationLandscape

Chief® Black X-Large Fusion Manual Height Adjustable Floor Support Mount

Model #: XFA1UB
231467
Model #: XFA1UB
Chief
$1,870.40

$1,870.40

At a Glance

This solution is especially helpful for applications where the wall structure can't carry the weight. This floor support solution incorporates rounded edges and sleek features to give the aesthetics a softer, professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.

Get to know this product.

Sleek look suitable for multiple environments including education, corporate and digital signage

Turn knob allows single user to easily adjust the screen height using a 1/2" hex drill bit to any height between 48 and 65 inches (122 - 165 cm)

Flexible cable covers for lay in access down either side of the column to connect to external AV equipment

Magnetic, removable front cover allows for easy cable routing to AV components stored inside the column

Includes cable wrap hardware for cable management inside and outside

Landscape screen orientation (portrait only if screen is at least 34" tall and has a mounting pattern 400 x 400mm or smaller)

Ships pre-assembled

Useful Documents
Specifications

General Specs

Depth (in.)6.3
Width (in.)36.8
Height (in.)64.4
TV Size's up to (in.)100
Weight Capacity (lbs.)300
Mounting LocationFloor

Specifications

Center of Display to Floor Table Range42 – 59.6” (1066 – 1515 mm)
ColorBlack
Mounting Pattern Compatibility (Universal Versions)200 x 200 - 800 x 400 mm
Number Of Monitors1
Overall Dimensions (H x W x D)64.4 x 36.8 x 6.3" (1636 x 935 x 160 mm)
Solution TypeUniversal
Typical Screen Sizes55 - 100"
Wall Stud Compatibility In16" (406 mm)
Weight Capacity300 lbs (136.1 kg)
OrientationLandscape
