Chief® Over-the-Whiteboard Interactive Display Mount

Model #: OB1U

$359.20

At a Glance

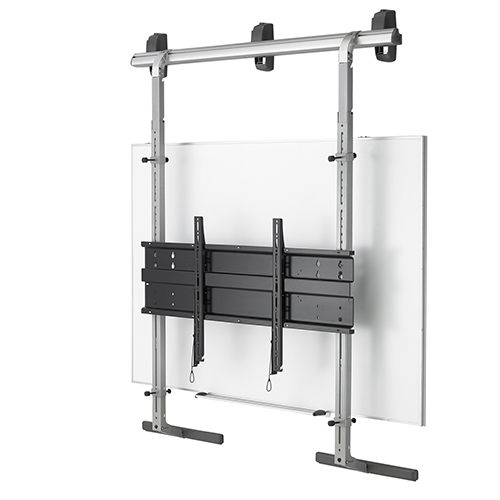

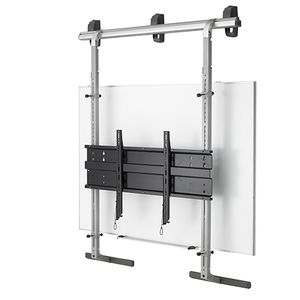

The Over-the-Whiteboard Interactive Display Mount allows for easy installation and adjustment of heavy interactive flat panel displays over existing chalkboards or whiteboards. The mount comes largely pre-assembled with minimal hardware, reducing installation time.

WarningProposition 65 Warning for California Residents
Chief® Over-the-Whiteboard Interactive Display Mount

General Specs

Depth (in.)6.3
Width (in.)55.25
Height (in.)61.1
TV Size's up to (in.)100
Weight Capacity (lbs.)310

Attributes

ColorSilver
Mounting Pattern Compatibility (Universal Versions)400 x 100 – 1020 x 500 mm (Specify FHB7036 bracket to extend to VESA®1020-600mm)
NotesDisplay height range: 26” (660.4 mm)
Overall Dimensions (H x W x D)61.1-75.1 x 55.25 x 6.3” (155.2 – 190.8 x 140.3 x 16 cm)
Solution TypeUniversal
Typical Screen Sizes42 - 100"
Weight Capacity310 lbs (140.6 kg)

Chief® Over-the-Whiteboard Interactive Display Mount

Model #: OB1U
232427
Model #: OB1U
Chief
$359.20

$359.20

At a Glance

The Over-the-Whiteboard Interactive Display Mount allows for easy installation and adjustment of heavy interactive flat panel displays over existing chalkboards or whiteboards. The mount comes largely pre-assembled with minimal hardware, reducing installation time.

Get to know this product.

It also provides height variability to accommodate younger children or those seated at lower levels.

Accommodates typical large displays between 50-80” andVESA® up to 1020 - 500 mm, specify FHB7037 bracket to extend to VESA® 1020 - 600 mm

Heavy-duty weight capacity of 310 lbs (140.6 kg)

Display height adjustment range of 26” (660 mm)

Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to remove display from box prior to installation

Installs into various wall types (wood, concrete, steel, cinder-block)

Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16” on-center studs, or two brackets for 24” on-center studs are included

Integrated lateral shift allows for easy adjustment left or right

When installed, mount allows for a minimum of 4” (102mm) clearance from wall

Plumb adjustment up to 1.5° to compensate for uneven walls

Telescoping legs allow mount to be adjusted easily around classroom obstacles

Useful Documents
Specifications

General Specs

Depth (in.)6.3
Width (in.)55.25
Height (in.)61.1
TV Size's up to (in.)100
Weight Capacity (lbs.)310

Attributes

ColorSilver
Mounting Pattern Compatibility (Universal Versions)400 x 100 – 1020 x 500 mm (Specify FHB7036 bracket to extend to VESA®1020-600mm)
NotesDisplay height range: 26” (660.4 mm)
Overall Dimensions (H x W x D)61.1-75.1 x 55.25 x 6.3” (155.2 – 190.8 x 140.3 x 16 cm)
Solution TypeUniversal
Typical Screen Sizes42 - 100"
Weight Capacity310 lbs (140.6 kg)
