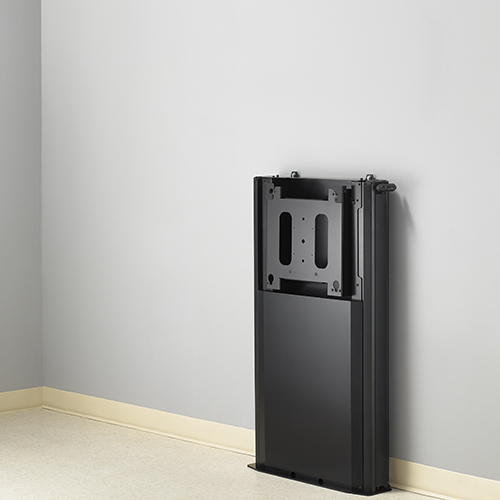

Chief® XL Electric Height Adjustable Floor Support Mount

Chief

Model #:

XFD1U

Model #: XFD1U
232858
Chief
$3,718.00

At a Glance

Ideal for interactive applications, mounts with electric height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides 26” (660 mm) of vertical lift.Read More

$3,718.00

Get to know this product.

Product Overview

Product Overview

Accommodates typical large displays between 50-80" up to 310 lbs (140.6 kg) with VESA® 200 x 200 – 860 x 510 mm

Anti-collision sensor immediately halts, then reverses motion of display upon encountering an obstruction to avoid pinching fingers or damaging technology

Integrated storage space – 16 x 8" (406 x 203 mm)

ControlZone for post-installation fine-tuning of height and leveling

Ships fully assembled.

Integrated cable management and strain relief protects traveling cable from disconnecting

Control pad included. Optional accessories sold separately; Remote Control Kit PACREM (includes remote and Bluetooth™ dongle) or choose Bluetooth Dongle PACBLU to access phone app

A full line of accessories can be installed with mount, including shelves, padlock and speaker adapters

* Mount Only, Other Pieces May Or May Not Be Sold Separately. See Store For Details.

Useful Documents
Manual
Specification Sheet
Specifications

General Specs

TV Size's up to (in.)100
Weight Capacity (lbs.)310

Information

AdjustmentsLeveling adjustment: up to 1.5” (38mm)
Center of Display to Floor Table Range35.96-61.55” (91.30-156.3cm)
CertificationsTÜV Certified, UL Listed
ColorBlack
Mounting Pattern Compatibility (Universal Versions)200x200 – 860x510mm
NotesVertical lift: 26” (660mm)
Typical Screen Sizes5555 - 100"
Weight Capacity310 lbs (140.6 kg)
WarningProposition 65 Warning for California Residents
