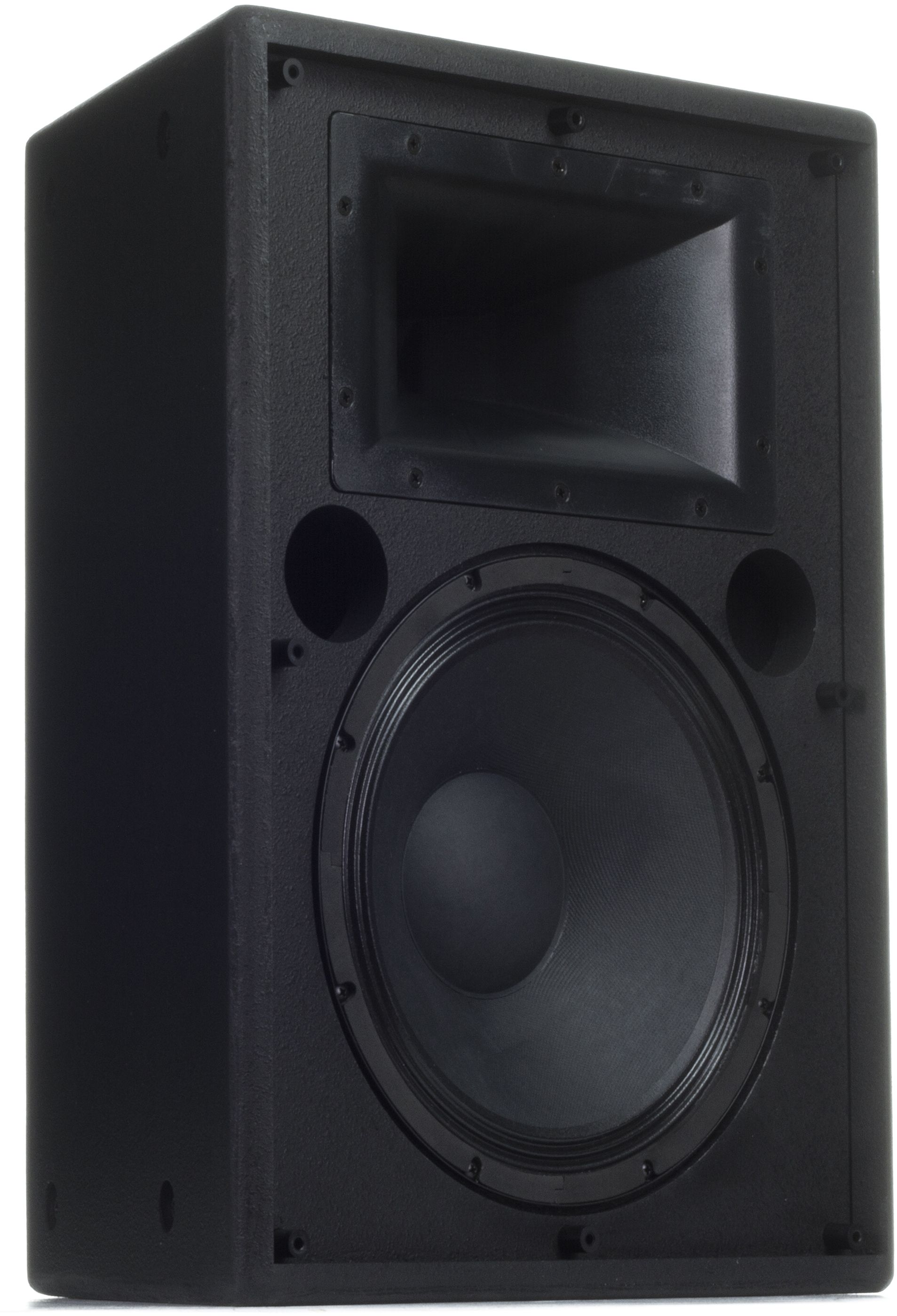

Klipsch® Profesional Black KI-262-SMA-II 12" 2-Way Trapezoidal Loudspeaker

Model #: KI-262-SMA-II-Black

$1,549.00

At a Glance

The KI-262-SMA-II two-way trapezoidal loudspeaker is ideally suited for applications where small size uniform power response and ease of installation contribute to a quality sound solution. The Tractrix® Horn- loaded KI-262-SMA-II is recommended for use in theaters, auditoriums, clubs, churches, and A/V production environments.

WarningProposition 65 Warning for California Residents
Klipsch® Profesional Black KI-262-SMA-II 12" 2-Way Trapezoidal Loudspeaker

General Specs

Product Weight (lbs.)49
MPN1062018
Color Finish NameBlack
RMS Power Handling (Watts)1200
ColorBlack
Depth (in.)12.6
Height (in.)23

General

Frequency Response (+/- 3 dB)71 Hz - 20 kHz (-10 dB @ 57 Hz)
Power Handling300 watts (35V); 1200 watts peak
Maximum SPL121 dB Continuous; 127 dB Peak
Sensitivity100 dB
CoverageHorizontal: 60° +/- 15º 2 kHz - 20 kHz; Vertical: 40° +/- 20º 4 kHz - 20 kHz
Directivity Index (DI)9 dB +/- 2 dB 2 kHz - 20 kHz
Directivity Factor (Q)7.9
Nominal Impedance8 ohms, minimum 4.1 ohms @ 152 Hz
Overload ProtectionsKLIP Overload Protection Circuit-HF
Crossover Frequency900 Hz
ComponentsOne K-281-EP 12" woofer; One K-70-G 1.75” titanium compression driver on a K-604 horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints; Two 5/16”-18 threaded holes (top and bottom) for C-bracket
Enclosure Material3/4” 7-ply birch plywood cabinet; 1” MDF motorboard
Height23” (58.42cm)
Width17” (43.18cm) front; 6.8” (17.27cm) rear
Depth12.6” (32.03cm)
Weight49 lbs. (22.27kg)
FinishesBlack, White and Raw Birch

Klipsch® Profesional Black KI-262-SMA-II 12" 2-Way Trapezoidal Loudspeaker

Model #: KI-262-SMA-II-Black
876813
Model #: KI-262-SMA-II-Black
Klipsch
$1,549.00

$1,549.00

At a Glance

The KI-262-SMA-II two-way trapezoidal loudspeaker is ideally suited for applications where small size uniform power response and ease of installation contribute to a quality sound solution. The Tractrix® Horn- loaded KI-262-SMA-II is recommended for use in theaters, auditoriums, clubs, churches, and A/V production environments.

Get to know this product.

Able to hang using 16 built-in 3/8” 16-thread fly points the KI-262-SMA-II provides the coverage control, fidelity, and reliability expected of Klipsch professional loudspeakers. The plywood enclosure uses dado “lock-joint” and rabbet construction techniques on CNC- fabricated panels for long-term reliability and ruggedness.

Compact 22.55º symmetrical trapezoidal design two-way speaker

12” (30.48cm) woofer and 1.75” (4.4cm) titanium diaphragm high-frequency compression driver

60º x 40º Modified Tractrix® Horn for tight pattern control

Internal high current full-range crossover

16 suspension points

KLIP-circuit HF driver protection devices

Applications

Restaurants

Schools

Houses of worship

Health clubs

AV production environments

Auditoriums

Specifications

General Specs

Product Weight (lbs.)49
MPN1062018
Color Finish NameBlack
RMS Power Handling (Watts)1200
ColorBlack
Depth (in.)12.6
Height (in.)23

General

Frequency Response (+/- 3 dB)71 Hz - 20 kHz (-10 dB @ 57 Hz)
Power Handling300 watts (35V); 1200 watts peak
Maximum SPL121 dB Continuous; 127 dB Peak
Sensitivity100 dB
CoverageHorizontal: 60° +/- 15º 2 kHz - 20 kHz; Vertical: 40° +/- 20º 4 kHz - 20 kHz
Directivity Index (DI)9 dB +/- 2 dB 2 kHz - 20 kHz
Directivity Factor (Q)7.9
Nominal Impedance8 ohms, minimum 4.1 ohms @ 152 Hz
Overload ProtectionsKLIP Overload Protection Circuit-HF
Crossover Frequency900 Hz
ComponentsOne K-281-EP 12" woofer; One K-70-G 1.75” titanium compression driver on a K-604 horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints; Two 5/16”-18 threaded holes (top and bottom) for C-bracket
Enclosure Material3/4” 7-ply birch plywood cabinet; 1” MDF motorboard
Height23” (58.42cm)
Width17” (43.18cm) front; 6.8” (17.27cm) rear
Depth12.6” (32.03cm)
Weight49 lbs. (22.27kg)
FinishesBlack, White and Raw Birch
