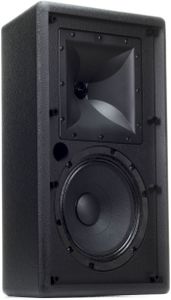

Klipsch® Professional Black KI-102-SMA-II 8" Trapezoidal Loudspeaker

Klipsch

Model #:

1061960

Model #: 1061960
174955
Klipsch
$704.00

At a Glance

The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.Read More

$704.00

Get to know this product.

Product Overview

Product Overview

The KI-102-SMA-II features a hybrid Tractrix "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.

CNC fabrication techniques dado “lock-tab” and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket

Compact 22.5º symmetrical trapezoidal design

115dB maximum continuous output

8” (20.32cm) woofer and 1” (2.54cm) titanium diaphragm high-frequency compression driver

90º X 90º modified Tractrix® Horn

KLIP-circuit HF driver protection devices

Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket

Applications

Restaurants

Schools

Houses of worship

Health clubs

AV production environments

Auditoriums

Useful Documents
Specification Sheet
Product Manual
Brochure
Specifications

General Specs

Product Weight (lbs.)24
RMS Power Handling (Watts)800
Maximum Power Handling (Watts)800
Depth (in.)9.3
Height (in.)18.9
Woofer Size8"

General

Frequency Response (+/- 3 dB)88 Hz - 17 kHz (-10 dB @ 56 Hz)
Power Handling200 watts (31V); 800 watts peak
Maximum SPL115 dB Continuous; 121 dB Peak
Sensitivity95 dB
CoverageHorizontal: 90° +/- 20º 2.1 kHz - 19 kHz; Vertical: 90° +/- 30º 2.5 kHz - 19 kHz
Directivity Index (DI)7 dB +/- 1 dB 1 kHz - 17 kHz
Directivity Factor (Q)5
Nominal Impedance8 ohms, minimum 4.9 ohms @ 184 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency2 kHz
ComponentsOne K-81-ST 8" woofer; One K-103-TI-KP 1” titanium compression driver on a K-802-M horn
Input ConnectionTwo point barrier strip
Mounting Options2 screw: 1/4” x 20; Machine screw for SB-102 Bracket
Enclosure Material3/4" MDF
Height18.9” (48.00cm)
Width11.6” (29.46cm) front; 4.2” (10.67cm) rear
Depth9.3” (23.77cm)
Weight24 lbs. (10.90kg)
FinishesBlack, White and Raw MDF
AccessoriesSB-102 Mounting Bracket
WarningProposition 65 Warning for California Residents
