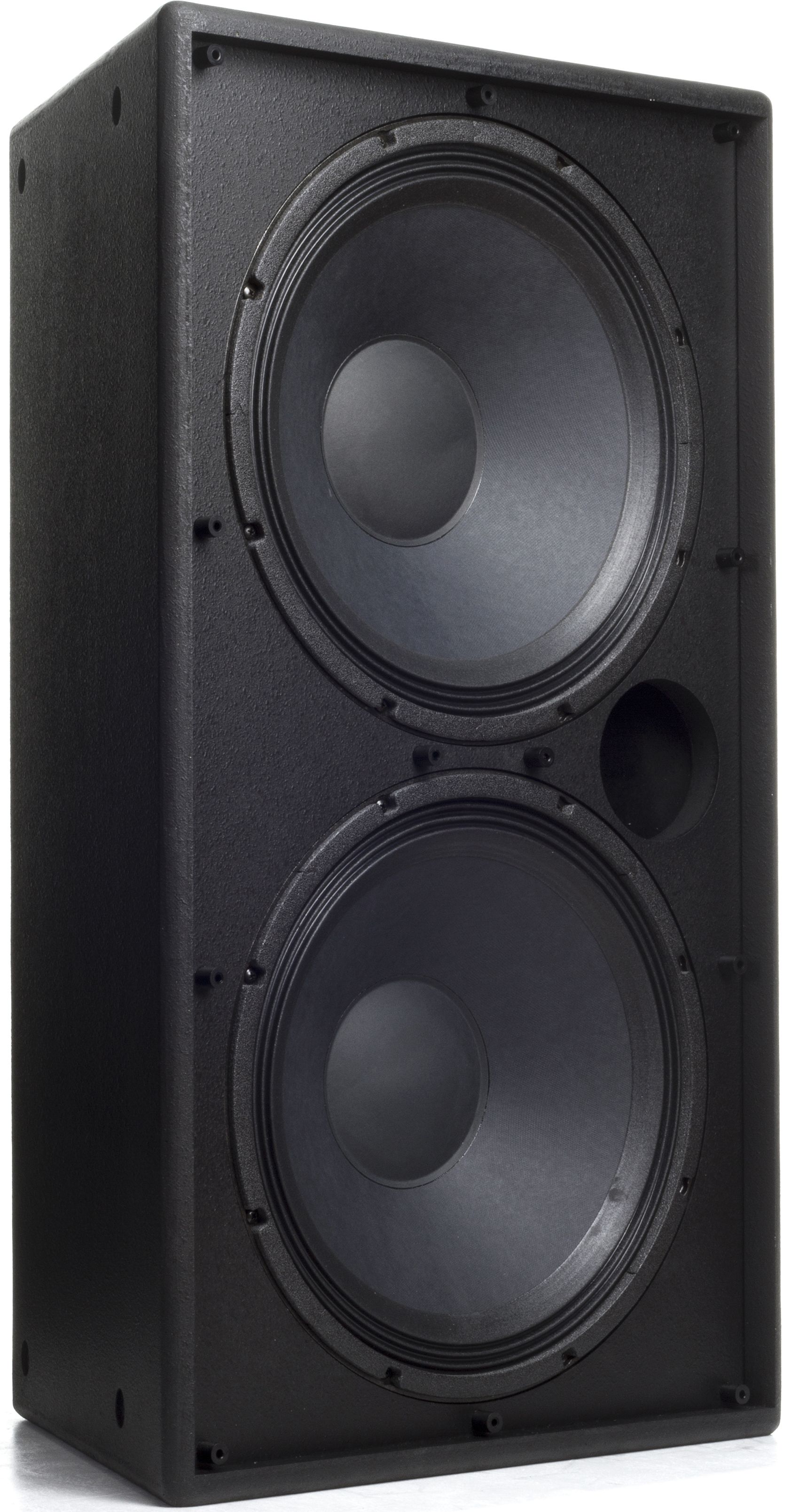

Its highest-quality heavy-duty drive components use 104-ounce magnets and 3” voice coils as well as proprietary speaker motor assemblies to deliver high sensitivity and advanced power handling capabilities.
Ideal for clubs, theaters, auditoriums, churches, and performance halls the plywood construction tuned port enclosure applies CNC fabrication techniques for uniform tolerances and build reliability.
|Frequency Response||70 Hz - 2.4 kHz (-10 dB @ 53 Hz)|
|Power Handling||800 watts (53V); 3200 watts peak|
|Maximum SPL||130 dB Continuous; 136 dB Peak|
|Nominal Impedance||8 Ohms, minimum 3.5 Ohms @ 42 Hz|
|Components||Two K-45-ST 15” woofers|
|Input Connection||Two point barrier strip|
|Mounting Options||Sixteen 3/8”-16 flypoints|
|Bracket Mount||One attachment point for C-bracket; Top and Bottom: 3/8”-16|
|Enclosure Material||3/4" 7-ply birch plywood cabinet; 1” MDF motorboard|
|Width||19.8” (50.29cm) front; 6.8” (17.27cm) rear|
|Weight||81 lbs. (36.82kg)|
|Finishes||Black, White and Raw Birch|
|Maximum Power Handling (Watts)||3200|
|Rms Power Handling||3200|
