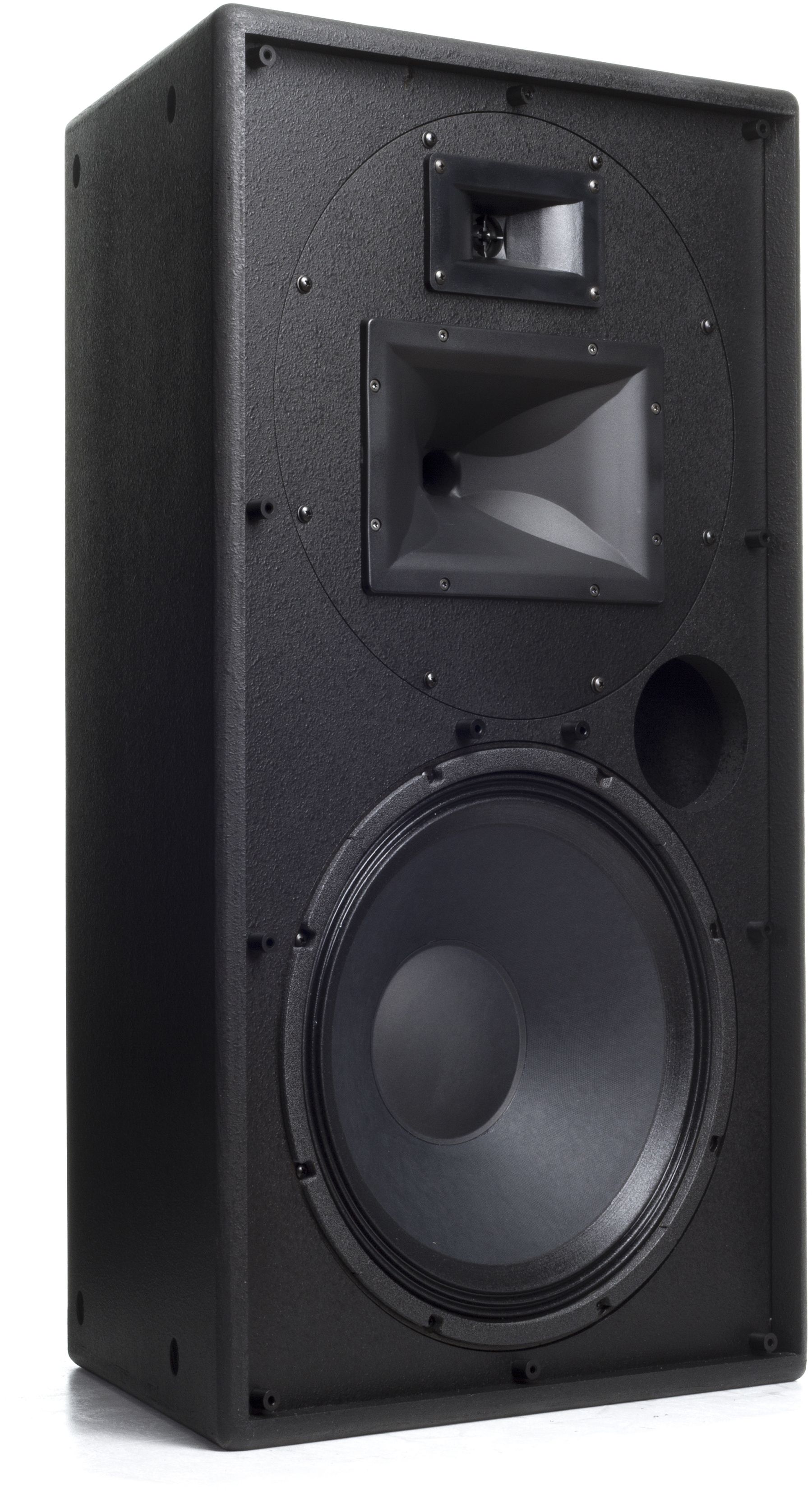

Klipsch® Professional Black KI-362-SMA-II Trapezoidal 15" 3-Way Loudspeaker
$1,994.00
At a Glance
The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.
Proposition 65 Warning for California Residents
Misc. Specs
| Product Weight (lbs.) | 70 |
|---|---|
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 1600 |
| Depth (in.) | 16 |
| Height (in.) | 34.3 |
| Width (in.) | 19.8 |
| Woofer Size | 15" |
General
| Frequency Response | 54 Hz - 20 kHz (-10 dB @ 38 Hz) |
|---|---|
| Power Handling | 400 watts (42V); 1600 watts peak |
| Maximum SPL | 124 dB Continuous; 130 dB Peak |
| Sensitivity | 101 dB |
| Coverage | Horizontal: 90° +/- 30º 400 Hz - 16 kHz; Vertical: 60° +/- 20º 2.8 kHz - 20 kHz |
| Directivity Index (DI) | 8 dB +/- 2 dB 500 Hz - 20 kHz |
| Directivity Factor (Q) | 6.3 |
| Nominal Impedance | 8 Ohms, minimum 4.4 Ohms @ 106 Hz |
| Overload Protection | KLIP Overload Protection Circuit-HF |
| Crossover Frequency | 1.26 kHz and 6.8 kHz |
| Components | One K-48-ST 15" woofer; One K-53-TI 1.5” titanium compression driver on a K-703-M horn; One K-100-TI 1” titanium compression driver on a K-79-T horn |
| Input Connection | Two point barrier strip |
| Mounting Options | Sixteen 3/8”-16 flypoints |
| Bracket Mount | One attachment point for C-bracket; Top and Bottom: 3/8”-16 |
| Enclosure Material | 3/4" 7-ply birch plywood cabinet; 1” MDF motorboard |
| Height | 34.3” (87.12cm) |
| Width | 19.8” (50.29cm) front; 6.8” (17.27cm) rear |
| Depth | 16” (40.64cm) |
| Weight | 70 lbs. (31.81kg) |
| Finishes | Black, White and Raw Birch |
Klipsch® Professional Black KI-362-SMA-II Trapezoidal 15" 3-Way Loudspeaker
Model #: 1062024
At a Glance
Get to know this product.
To permit use at any mounting angle the KI-362-SMA-II’s midrange and high-frequency drivers are adjustable in 45° increments allowing 60° or 90° projection patterns to be chosen independent of the vertical horizontal or lateral orientation of the enclosure.
Compact 22.5º symmetrical trapezoidal design
User-rotatable midrange and HF module for optimized pattern control
16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility
15” cast frame heavy-duty woofer
1.5” and 1” titanium midrange and high-frequency compression drivers
Internal high current full-range crossover
KLIP circuit Mid and HF driver protection device
Available in Black, White or Raw Birch finish
Applications
A/V Production Environments
Auditoriums and Houses of Worship
Bars and Music Clubs
Small/medium Sports Facilities
Theme Parks and Leisure Venues
Transportation Facilities
