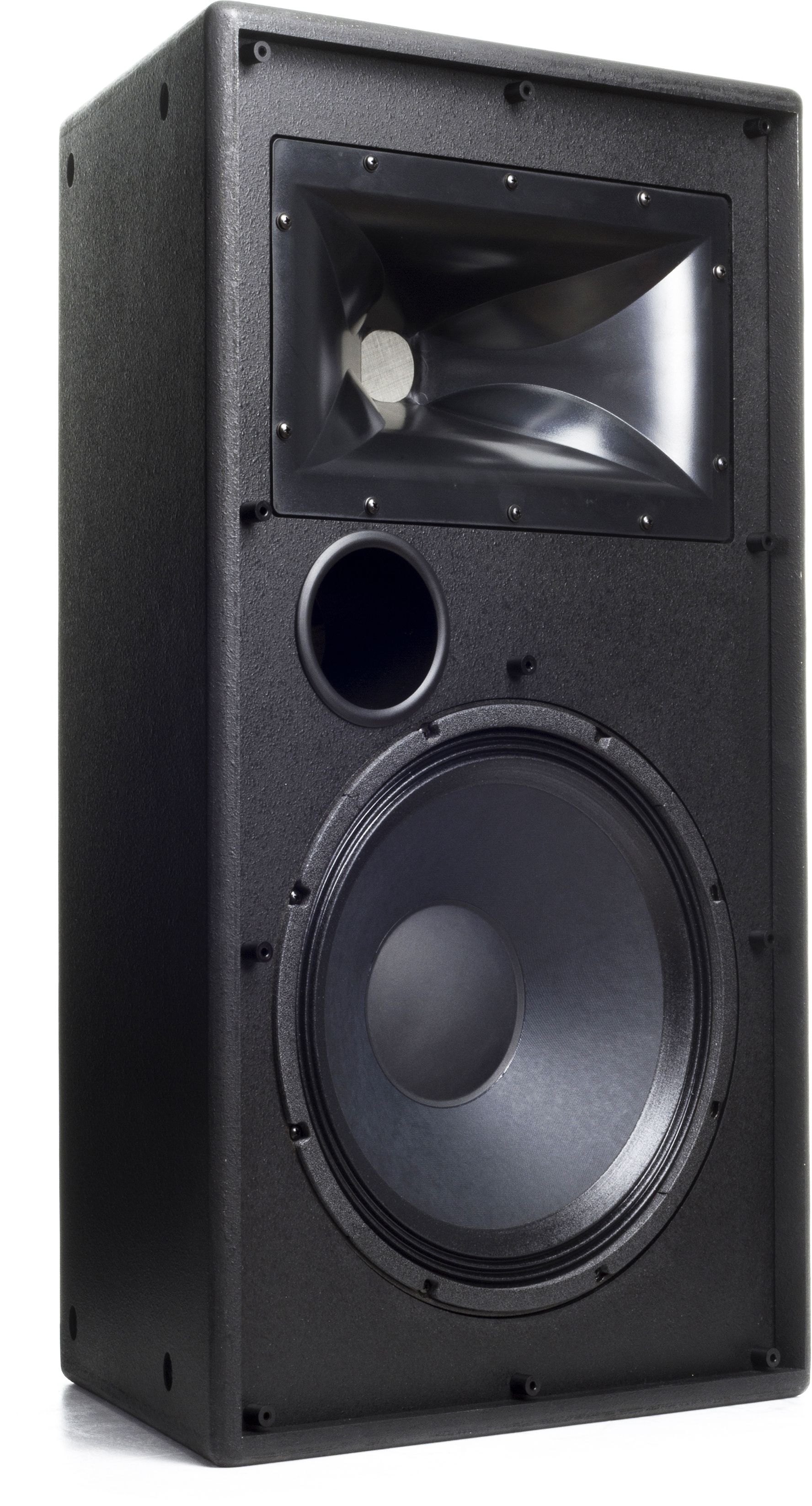

The Klipsch KI-396-SMA-II has incredible output capability with exceptional low-distortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15” high-excursion cast frame heavy-duty woofer, a large 3” titanium high-frequency compression driver and a 90°x60° Tractrix® "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.Read More
The KI-396-SMA-II permanent install speaker has 16 suspension points (4 per side) for flexible mounting and rigging bar compatibility and includes an internal high current full-range crossover.
Very high output capability with exceptional low-distortion clarity
Compact 22.5º symmetrical trapezoidal design
16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility
15” cast frame heavy-duty woofer
Large 3” (7.62cm) titanium diaphragm high-frequency compression driver
Internal high current full-range crossover
Available in Black, White or Raw Birch finish
Performing Spaces
Auditoriums and Houses of Worship
Bars and Music Clubs
Small/medium Sports Facilities
Theme Parks and Leisure Venues
Transportation Facilities
General Specs | |
| Product Weight (lbs.) | 76 |
| MPN | 1062027 |
| Color/Finish Name | Black |
| RMS Power Handling (Watts) | 2400 |
| Color | Black |
| Impedance | 8 ohms |
| Depth (in.) | 16 |
| Height (in.) | 34.3 |
General | |
| Frequency Response | 60 Hz - 18 kHz (-10 dB @ 35 Hz) |
| Power Handling | 600 watts (56V); 2400 watts peak |
| Maximum SPL | 127 dB Continuous; 133 dB Peak |
| Sensitivity | 101 dB |
| Coverage | Horizontal: 90° +/- 30º 400 Hz - 13 kHz; Vertical: 60° +/- 20º 1.6 kHz - 20 kHz |
| Directivity Index (DI) | 8 dB +/- 2 dB 1.6 kHz - 20 kHz |
| Directivity Factor (Q) | 6.3 |
| Nominal Impedance | 8 Ohms, minimum 5.1 Ohms @ 112 Hz |
| Crossover Frequency | 1 kHz |
| Components | One K-48-ST 15" woofer; One K-691 3” titanium compression driver on a K-510 horn |
| Input Connection | Two point barrier strip |
| Mounting Options | Sixteen 3/8”-16 flypoints |
| Bracket Mount | One attachment point for C-bracket; Top and Bottom: 3/8”-16 |
| Enclosure Material | 3/4" 7-ply birch plywood cabinet; 1” MDF motorboard |
| Height | 34.3” (87.12cm) |
| Width | 19.8” (50.29cm) front; 6.8” (17.27cm) rear |
| Depth | 16” (40.64cm) |
| Weight | 76 lbs. (34.54kg) |
| Finishes | Black, White and Raw Birch |
