The redesigned Tractrix Horn utilizes a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension, while enhancing imaging and dynamics. The compressed molded rubber construction adds high frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.
The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.
The RF-7 III new bifurcated enclosure allows each 10” driver and port to work independently from the other. This improves the linearity of both drive systems, and minimizes standing wave problems inside the cabinet that can cause frequency anomalies in the sensitive midrange frequencies. Utilizing Tractrix geometry, the new RF-7 III ports allow for the most efficient air transfer from the cabinet — for the cleanest, most powerful low frequency response on the market.
Each 10” woofer feature a heavy-duty cast aluminum frame for resonant-free operation. In addition, each woofer incorporates a dual shorting-ring magnet structure design to eliminate modulation of the magnetic flux resulting in improved linearity of cone movement.

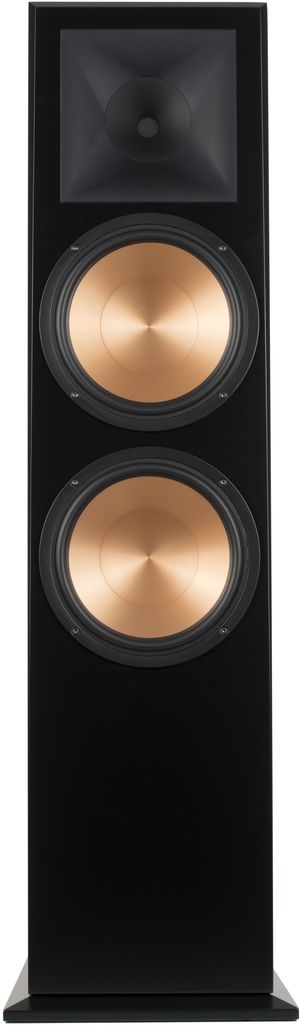

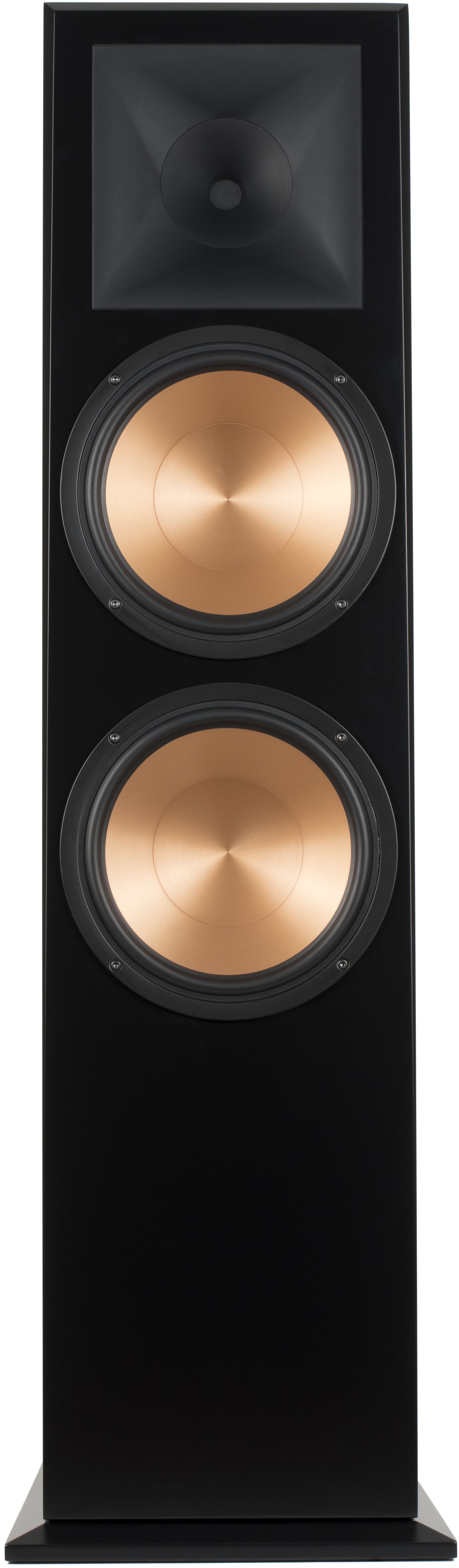

The RF-7 III floorstanding speaker enclosures all utilize furniture grade wood veneers, and are available in Black Ash, Cherry & Walnut.
These speakers are built to rigid Klipsch standards — the toughest in the industry. Remember great sound? We do, too. These speakers are Designed & Assembled in the USA, by proud craftsmen in Hope, Arkansas. Just like Paul W. Klipsch (PWK) intended.
|Enclosure Type:||Dual Chambered, Bass Reflex - Via Dual Rear-Firing Tractrix Ports|
|Woofer Composition:||Cerametallic™ Cone|
|Frequency Response||32–25kHz +/– 3dB|
|Power Handling||250W / 1000W peak|
|Sensitivity||100 dB @ 2.83V / 1M|
|Nominal Impedance||8 ohms compatible|
|High Frequency Horn||8.5” square 90˚ x 90˚ Tractrix® Horn|
|High Frequency Drivers||1.75” (4.45cm) titanium diaphragm compression driver|
|Crossover Frequency||1,300 Hz|
|Low Frequency Drivers||Two 10” (25.4cm) Cerametallic cone woofers|
|Inputs||Dual binding posts / bi-wire / bi-amp|
|Enclosure Type||Dual chambered, bass-reflex — via dual rear-firing Tractrix ports|
|Height||49” (124.5cm) including plinth|
|Width||13.875” (35.2cm) including plinth|
|Depth||17.875” (45.4cm) including plinth|
|Weight||97 Ibs (44.1kg)|
|Product Weight (lbs.)||97|
|Color Finish Name||Walnut|
|RMS Power Handling (Watts)||1000|
|Number of Speakers||1|
|Speaker Type||Floor-Standing Speakers|
