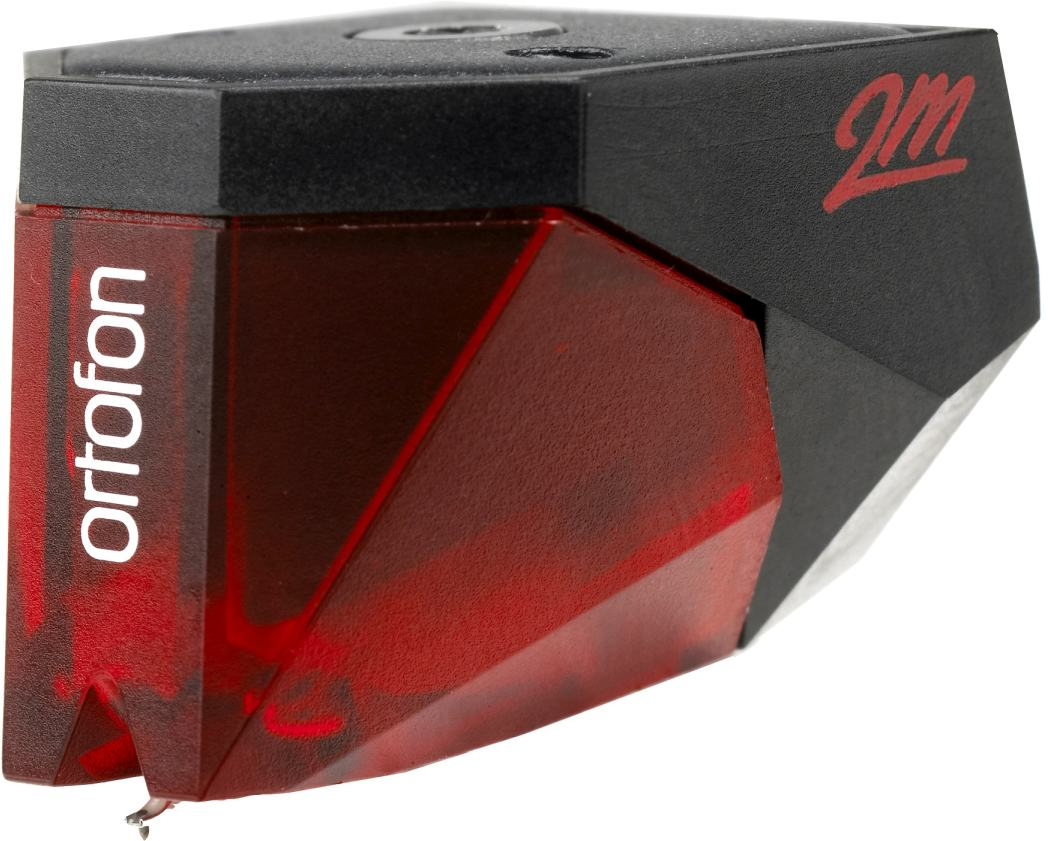

Ortofon Phono Cartridge
Model #: 2M RED
At a Glance
2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
Proposition 65 Warning for California Residents
General Specs
| Collection | Phono Cartridges |
|---|
Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV Channel balance at 1 kHz - 1.5 dB Channel separation at 1 kHz - 22 dB Channel separation at 15 kHz - 15 dB Frequency response - 20-20.000 Hz + 3 / - 1 dB Tracking ability at 315Hz at recommended tracking force - 70 µm Compliance, dynamic, lateral - 20 µm/mN Stylus type - Elliptical Stylus tip radius - r/R 8/18 µm Tracking force range - 1.6-2.0 g (16-20 mN) Tracking force, recommended - 1.8 g (18 mN) Tracking angle - 20° Internal impedance, DC resistance - 1.3 kOhm Internal inductance - 700 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 150-300 pF Cartridge colour, body/stylus - Black/Red 2M standard and 2M Verso cartridges weight - 7.2 g 2M PnP MkII cartridge with integrated headshell weight - 20 g 2M PnP MkII cartridge with integrated headshell length - 52 mm Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)
Ortofon Phono Cartridge
Model #: 2M RED
1280310
Model #: 2M RED
Ortofon
$99,999.00
Call for Best Price
At a Glance
2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
Get to know this product.
Features - an improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy. - a tipped Elliptical diamond and split pole pins with a copper wire. - the cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
