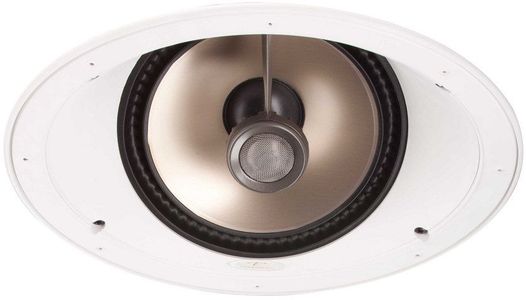

Paradigm® Signature Series In-Ceiling Speaker

A Disappearing Act That's Tough For The Competition To Follow!

It’s not often that Paradigm makes a fuss about removing something from a speaker, but this is one of those times. The whole point of ceiling speakers is in the aesthetic. When customers choose Paradigm in-ceilings, it’s a given they want to hear great sound, they just don’t want to see it. We complied, making our virtually invisible in-ceiling bezels even less visible across the Signature Series in-ceiling lineup. The odd time your customer looks up at the ceiling, there won’t be much to see … which is exactly what they’re looking for!

Model Enhancements

• NEW! Thinner, Sleeker Bezels with more transparent scrim for a cleaner, disappearing aesthetic with increased sonic transparency.
• NEW! low-density NLC™ Non-Limiting Corrugated thermoplastic elastomer TPE Surround, trickle down technology from our Signature Series. FEA?optimized and overmolded onto the polypropylene cone.
• In concert with the new motor structure (see below) we’ve achieved double the power in these models! + 3dB! The speaker now plays louder. The thermoplastic elastomer is ten times more effective than standard elastomers in damping vibrations and resonances and the corrugations increase peak-to-peak excursion. While we would have loved to have effected this change across models, the Guided Soundfield model was the only model physically able to accommodate the size and quantity of corrugations needed and the larger motor structure.
• NEW! Motor Structure Includes a Three-Split Voice Coil, thicker top plate and larger ceramic/ferrite magnet. The new structure further improves low-frequency sound distortion at high excursion while maintaining the much-lauded frequency response of the previous generation. The speaker can play significantly louder now, but without a hint of compression/distortion.
• About?Our?In-Wall?Models For?Those?Who?Are?Wondering! Thinner bezels are not an aesthetic issue in in-walls, so bezels were left untouched.
• Full-Perimeter Bracket Design. Unlike typical mounting ears, brackets cover the full diameter or height and width of the speaker chassis to effectively sandwich and strengthen the area around the mounting hole.
• Cutting-Edge P-Be™ Pure-Beryllium Domes. Exotic beryllium! The metal of choice for truly ultimate levels of high-frequency performance. A stiffness-to-density ratio superior to metals such as aluminum, titanium and even diamond. Performance is clear, uncolored and completely uncompromised.
• Cutting-Edge Co-PAL™ Cobalt-Infused Pure-Aluminum Cones. Combine high stiffness-to-mass ratio with superior internal damping for an even greater degree of accuracy. Advanced Nomex® cloth suspensions and butyl rubber surrounds promote superb and extended excursion.
• Cutting-Edge Mineral-Filled Co-Polymer Polypropylene Bass Cones. Superior stiffness-to-mass. Precision-engineered for higher sensitivity, power handling and ultra-low levels of distortion. Massive optimized ceramic ferrite or neodymium magnet / motor structures with focused-field geometry.
• Combination Ultra-Rigid™ Die-Cast Chassis and GRIP™ Glass-Reinforced Injection-Molded Polymer Bracket. Supremely rigid structure reduces resonances and standing waves. The use of an aluminum chassis allows the chassis to function as a heatsink.
